WALL PLATES
- For standard or custom head- or foot-end installations
- Optional pigtails available for quicker installation
- Plastic plates available
WPA-0001

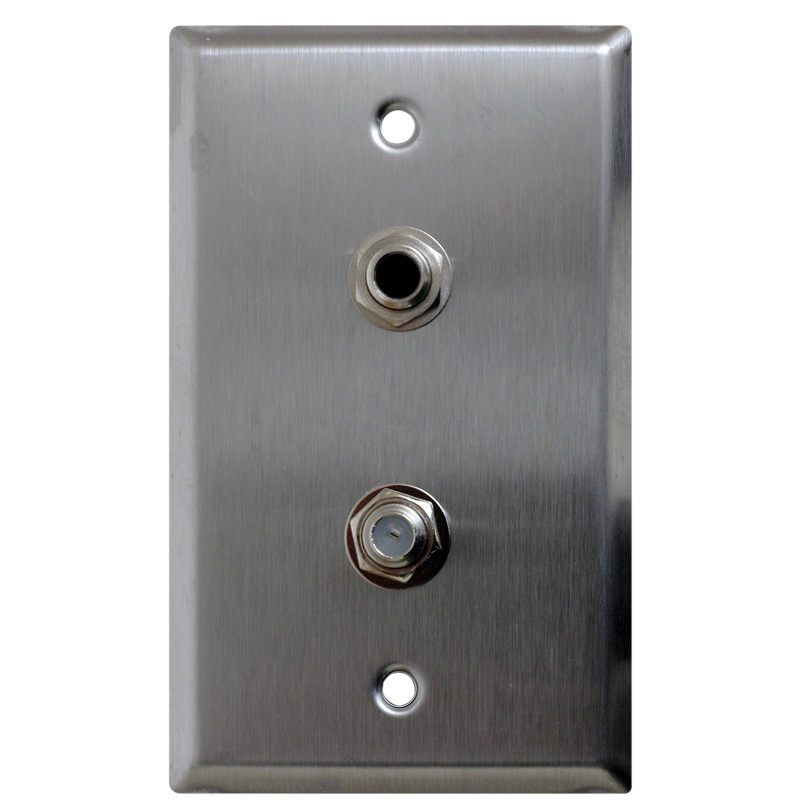

WPA-0005
WPA-0017
| SOCKET 1 | SOCKET 2 | SOCKET 3 | GANGS | PIGTAILS | DUPLEX | MODEL NUMBER | PART NUMBER |
|---|---|---|---|---|---|---|---|
| 1/4" | – | – | 1 | No | No | WPA-0002 | 13850 |
| 1/4" | Coax | – | 1 | No | No | WPA-0005 | 13852 |
| 1/4" | Coax | – | 1 | Yes | No | WPA-0152 | 13886 |
| 1/4" | 1/4" | – | 1 | Yes | No | WPA-0182 | 13888 |
| 1/4" | – | – | 1 | Yes | No | WPA-0183 | 13889 |
| 1/4" | Coax | – | 2 | No | Yes | WPA-0036 | 13865 |
| 1/4" | Coax | – | 2 | Yes | Yes | WPA-0185 | 13890 |
| 1/4" | Coax | – | 3 | Yes | Yes | WPA-0419 | 13919 |
| 6-pin LG/Zenith | Coax | – | 1 | No | No | WPA-0001 | 13849 |
| 6-pin LG/Zenith | Coax | – | 1 | Yes | No | WPA-0004 | 13851 |
| 6-pin LG/Zenith | 6-pin Zenith | – | 1 | No | No | WPA-0008 | 13854 |
| 6-pin LG/Zenith | – | – | 1 | No | No | WPA-0010 | 13855 |
| 6-pin LG/Zenith | – | – | 1 | Yes | No | WPA-0088 | 13874 |
| 6-pin LG/Zenith | Coax | – | 2 | No | Yes | WPA-0017 | 13859 |
| 6-pin LG/Zenith | Coax | – | 2 | Yes | Yes | WPA-0466 | 13923 |
| 6-pin LG/Zenith | Coax | – | 3 | Yes | Yes | WPA-0626 | 13947 |
| Coax | – | – | 1 | No | No | WPA-0198 | 13895 |
| RJ45 | Coax | 6-pin Zenith | 1 | Yes | No | WPA-0767 | 13991 |
| RJ45 | Coax | 1/4" | 1 | Yes | No | WPA-0737 | 13977 |
