MONITOR MOUNTING OPTIONS

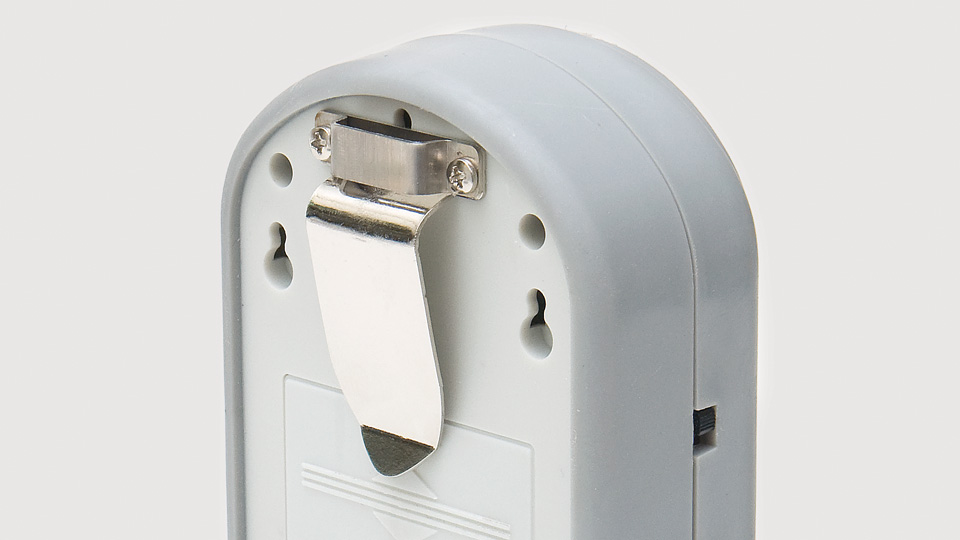

All Curbell monitors feature a clip on the rear of the monitor that allows them to be mounted onto a wheel chair, or onto any of the optional mounting brackets listed below.

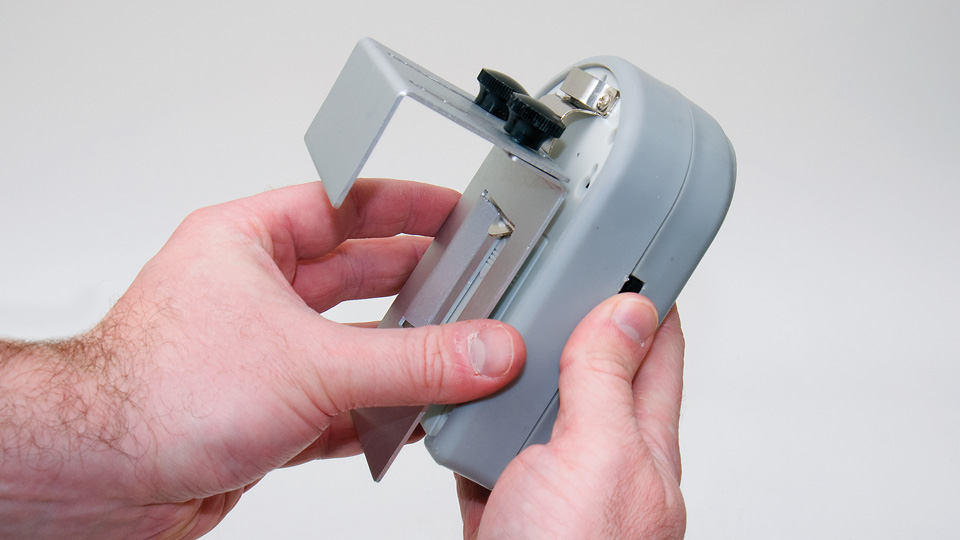

The clip slides easily into the bed mounting bracket (pictured above), Magnetic Mounting Bracket, or Wall Mounting Bracket, so you can mount the monitor virtually anywhere.

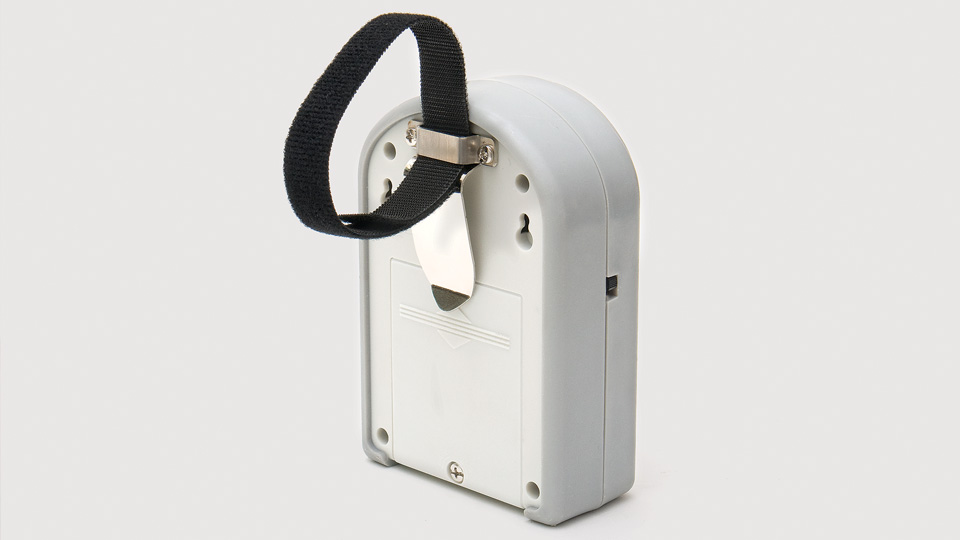

A Velcro loop is also supplied with every monitor. Just slip the loop through the bracket and hang the monitor on a wheelchair or bed rail.
| MODEL | DESCRIPTION | COMPATIBLE MONITORS | MODEL NUMBER |
|---|---|---|---|
 Bed Mounting Bracket | Adjustable to fit 7/8" to 2 5/8" width headboards and footboards | Current Monitors: BC300, BC600, PM100 Legacy Monitors: BC100, BC201, BC400 | CSM-BMB |
 Magnetic Mounting Bracket | Mounts to standard metal door jambs | Current Monitors: BC300, BC600, PM100 Legacy Monitors: BC100, BC201, BC400 | CSM-MMB |
 Wall Mounting Bracket | Mounts to the wall with screws or Velcro strips | Current Monitors: BC300, BC600, PM100 Legacy Monitors: BC100, BC201, BC400 | CSM-WMB |
 Stretcher Mounting Bracket | Mounts any Curbell fall management monitor onto a stretcher. | Current Monitors: BC300, BC600, PM100 Legacy Monitors: BC100, BC201, BC400 | CSM-SMB |
 BC500 MonitorWall Mounting Bracket | Mounts the BC500 to the wall next to the nurse call patient station | BC500 | CSM-500WMB |
