MAGNETIC BED BREAKAWAY CABLE

In busy healthcare environments, beds may be moved before staff remember to unplug them, potentially damaging the bed connection, cable, wall receptacle, or patient station. Curbell’s Magnetic Breakaway Bed Cable maintains a secure, reliable connection, but separates safely to help minimize this damage.

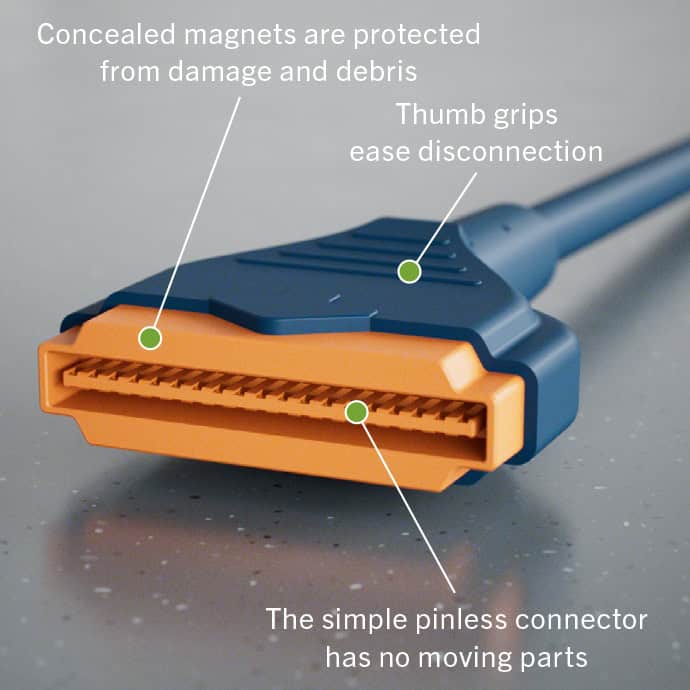

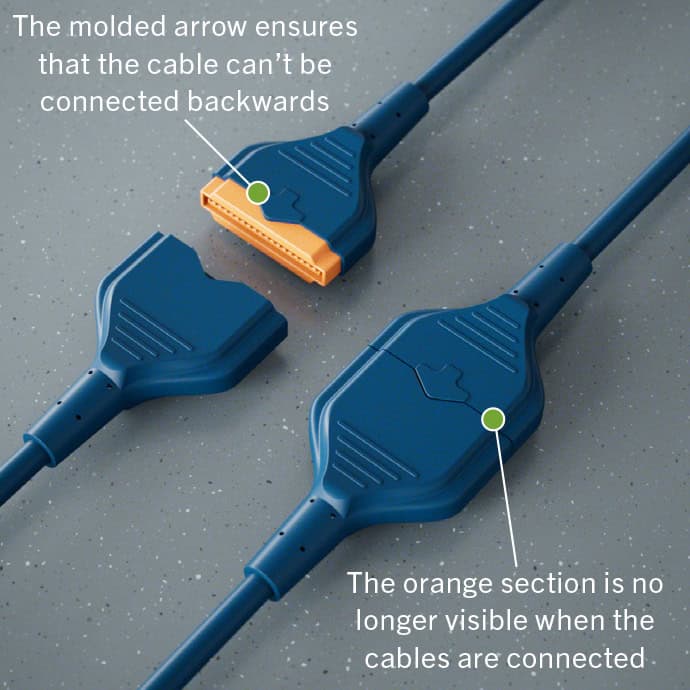

The unique design is quick to connect and easy to align, with hidden magnets that ensure a proper connection while reducing the risk of attracting objects that could cause a short circuit. The cable’s recessed, pinless connector has no moving parts, unlike other magnetic breakaway cables with spring-loaded “pogo” pins which frequently break or jam. Its blue and orange housing makes it easy to identify among the many cables often found behind the bed.

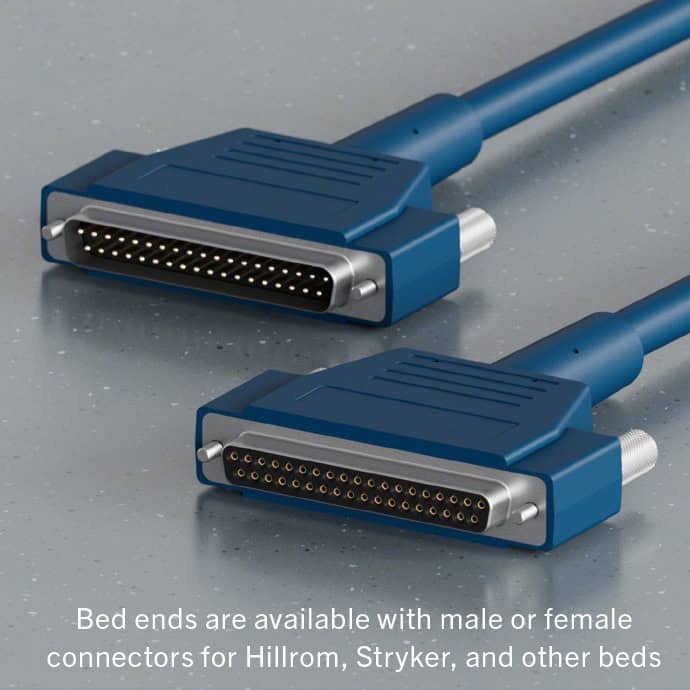

BED END DESCRIPTION	LENGTH	WALL END DESCRIPTION	LENGTH	MODEL	PART NUMBER

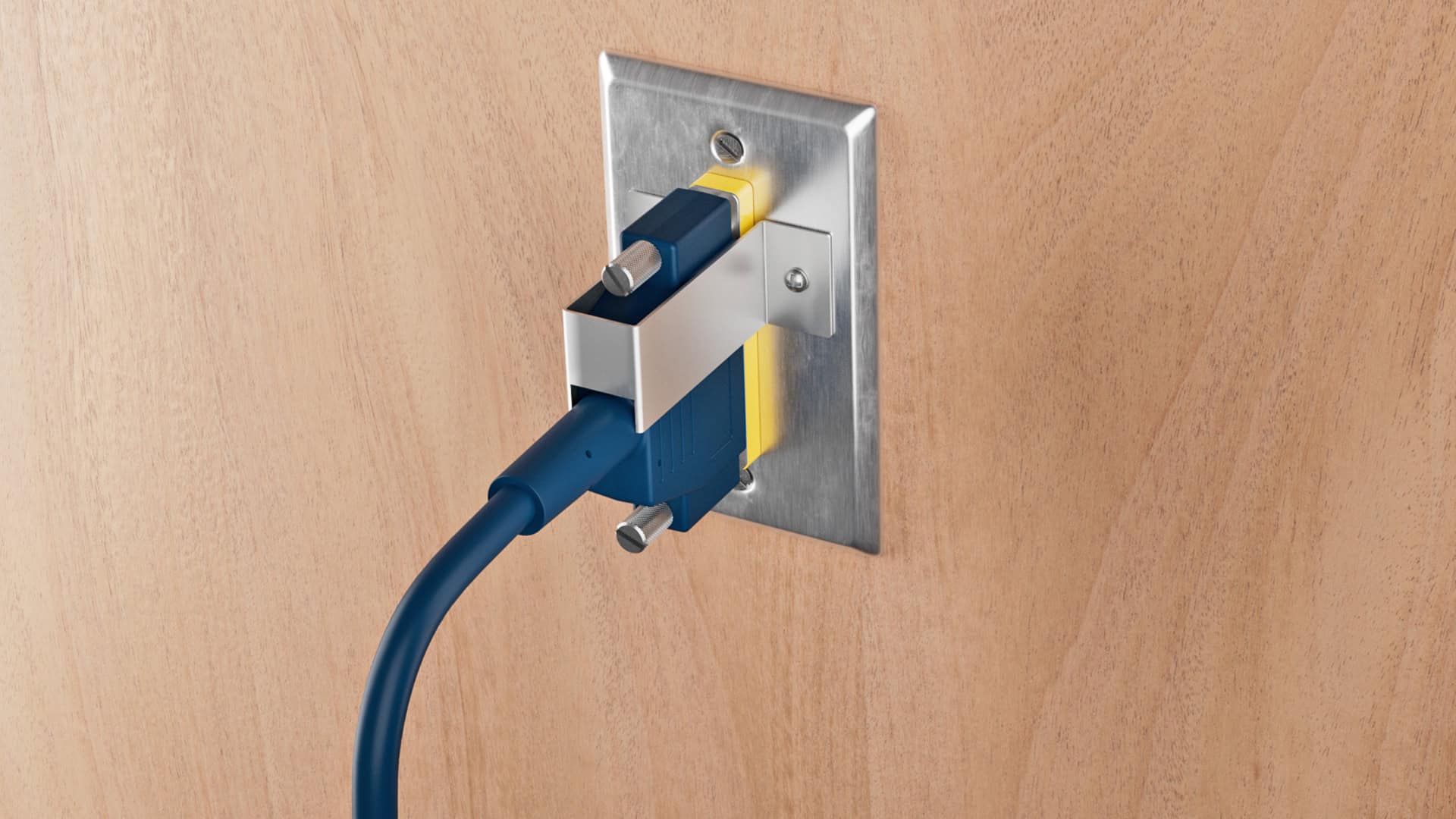

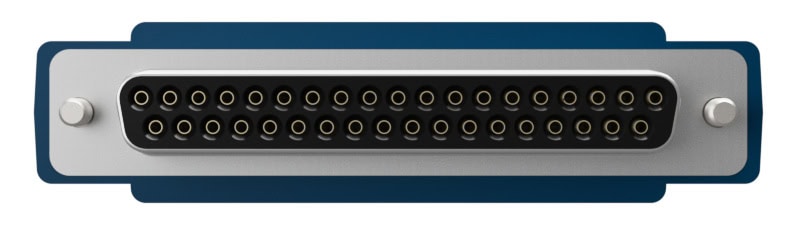

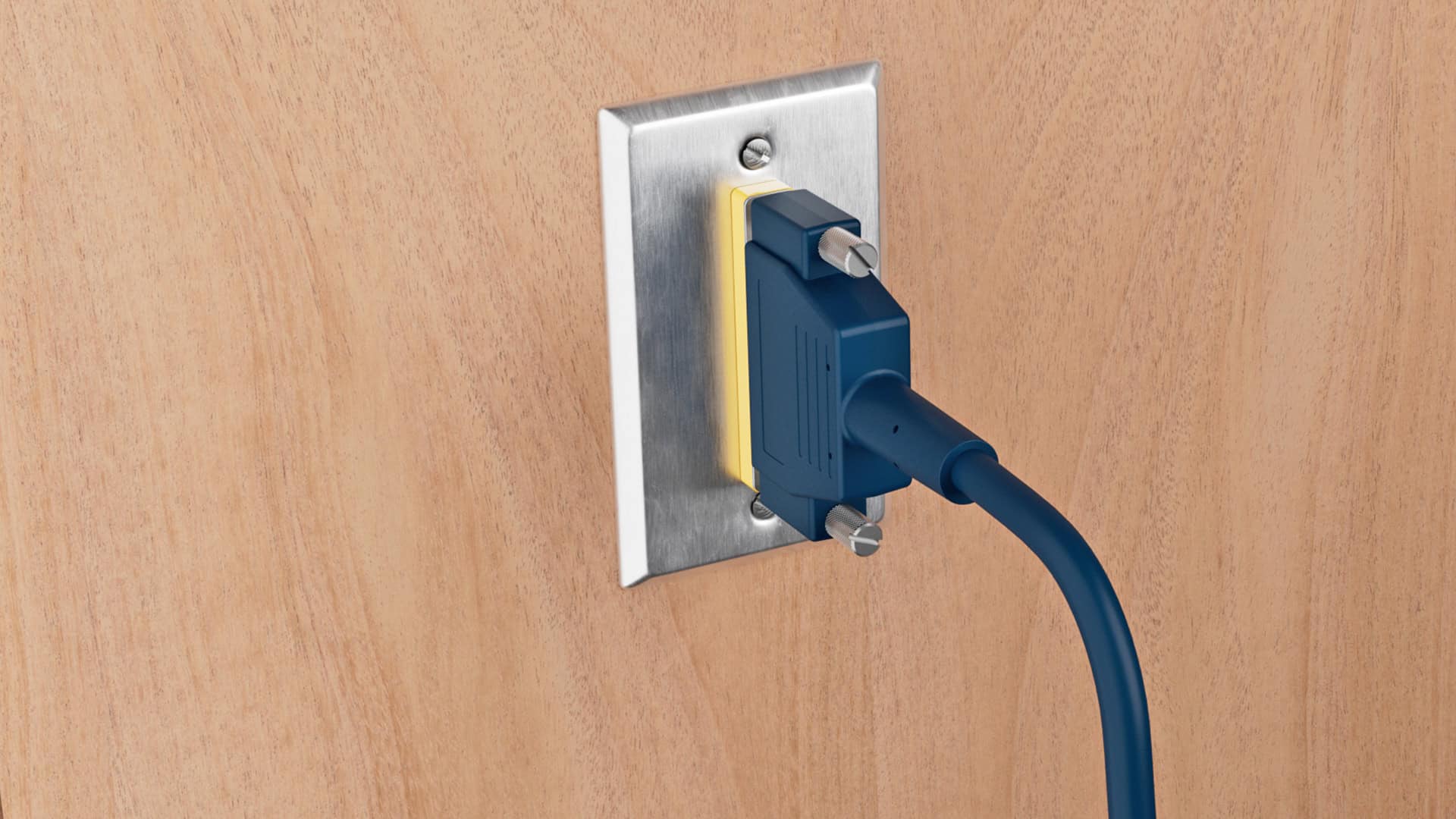

37-Pin female, Hill-Rom	6 ft.	37-Pin male, straight inline	1 ft.	BCC-3802-A01-A06-001	30780

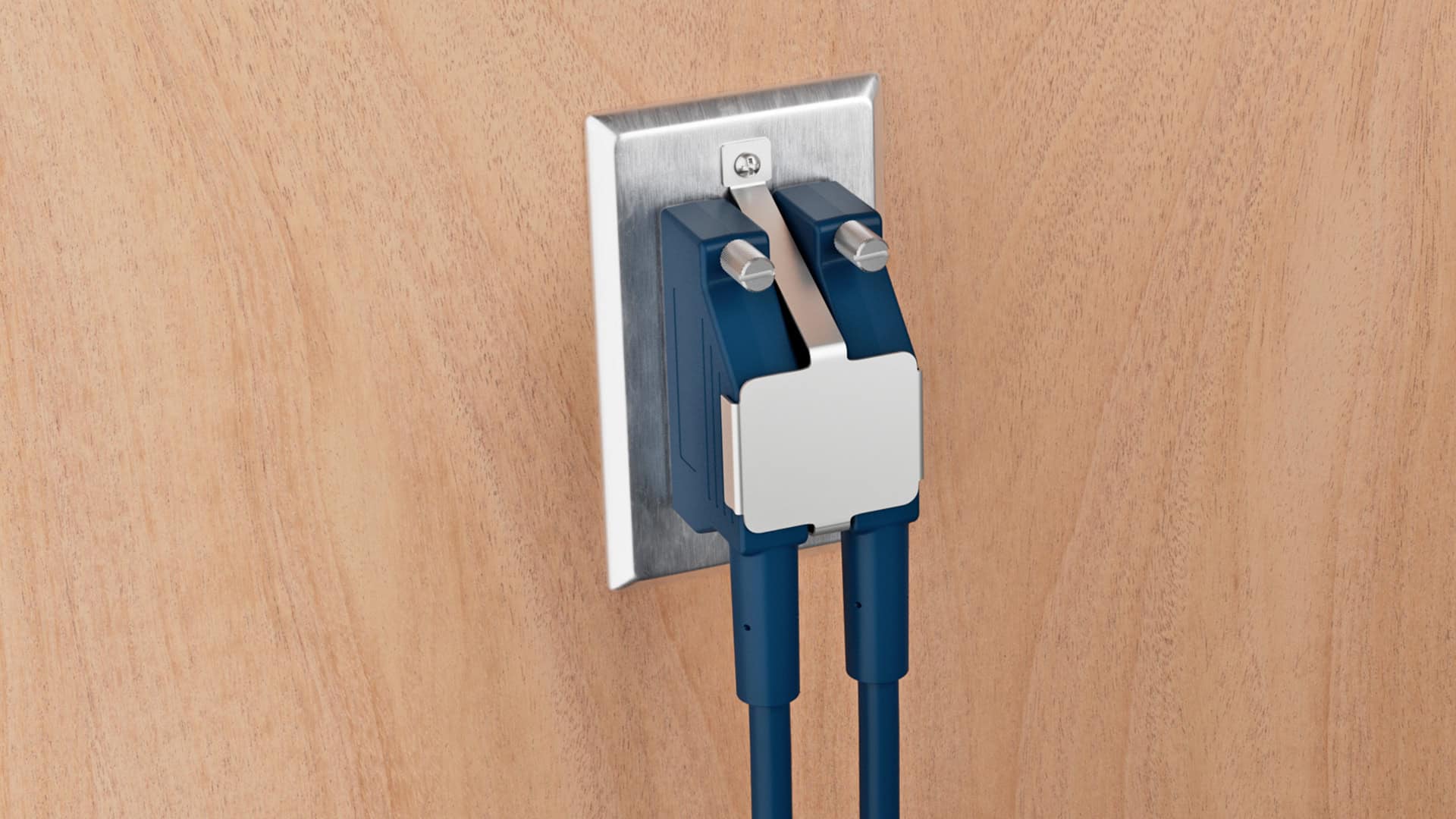

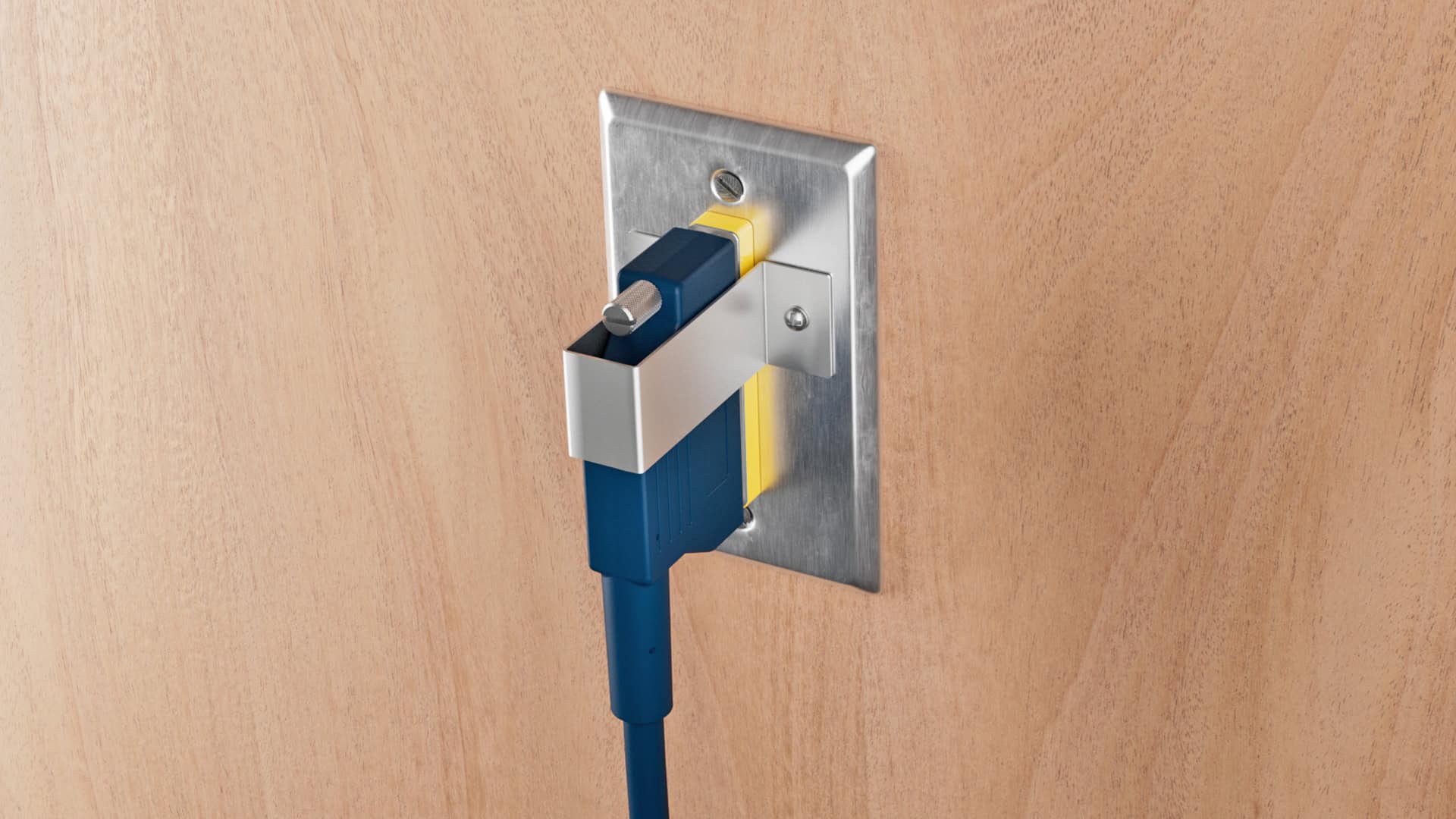

37-Pin female, Hill-Rom	6 ft.	37-Pin male, 90º angle	1 ft.	BCC-3803-A01-A06-001	30784
37-Pin female, Hill-Rom	1 ft.	37-Pin male, straight inline	6 ft.	BCC-3802-A06-A01-001	30782
37-Pin female, Hill-Rom	1 ft.	37-Pin male, 90º angle	6 ft.	BCC-3803-A06-A01-001	30786

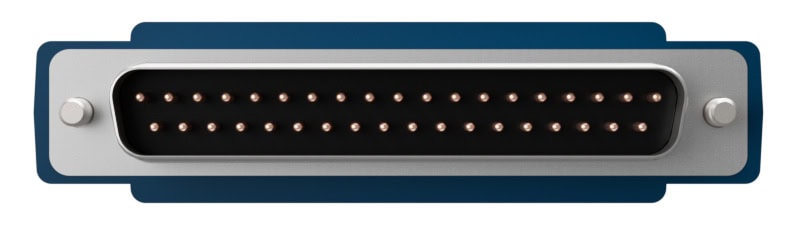

37-Pin male, Stryker	6 ft.	37-Pin male, straight inline	1 ft.	BCC-3802-A01-E06-001	30781
37-Pin male, Stryker	6 ft.	37-Pin male, 90º angle	1 ft.	BCC-3803-A01-E06-001	30785
37-Pin male, Stryker	1 ft.	37-Pin male, straight inline	6 ft.	BCC-3802-A06-E01-001	30783
37-Pin male, Stryker	1 ft.	37-Pin male, 90º angle	6 ft.	BCC-3803-A06-E01-001	30787
